How is a changeover done?

The Syntegon HMI 4.0 supports the operator in this task. The HMI 4.0 is an intuitive, user-friendly interface that contains recipes and videos to guide operators through the changeover process. The Kliklok BEC endload cartoner has easy access to the entire machine, and the three-dimensional size change requires minimal tools. It can be completed in less than 10 minutes by a single operator.

Which are the best cleaning methods for the BEC endload cartoner?

A standard Kliklok BEC endload (sideload) cartoner is IP54 rated. It can be cleaned using a cloth and warm water. The BEC can also be customized to work in IP65 or caustic wash-down environments, allowing it to be installed in a variety of applications including high care environments.

Which Service Agreement do you recommend for the BEC endload cartoner?

At Syntegon, we have packaged our Service offering into Service Agreements for your convenience. Our seven agreement levels are packed with risk reduction, peace of mind and ultimately value. Effective asset and maintenance management both increases the lifespan and improves the performance and reliability of your equipment. This means fewer breakdowns, fewer subsequent repairs and less unplanned equipment downtime. We support you with standardized packages from inspection to guaranteed production performance of your machines. All levels are available at a fixed price and can be customized with additional services. Our experts will be happy to consult you to find the ideal Service Agreement for your production.

Can the BEC endload cartoner handle all types of board?

Yes, the Kliklok BEC can handle all types of board with ease. Cartons are generally manufactured from two types of board. Solid board is more commonly used for secondary packaging applications and comes in two types - virgin and recycled board. Virgin board is made from 100 percent virgin fibers while recycled board may consist of up to 100 percent of recycled fibers. This type is more economical, but it has less strength. The BEC endloader (sideloader) is equipped with our patented Rotary Carton Feeder which was developed specifically to cope with recycled boards at higher speed; giving you flexibility to handle all of your cartoning needs.

What is the hopper specification?

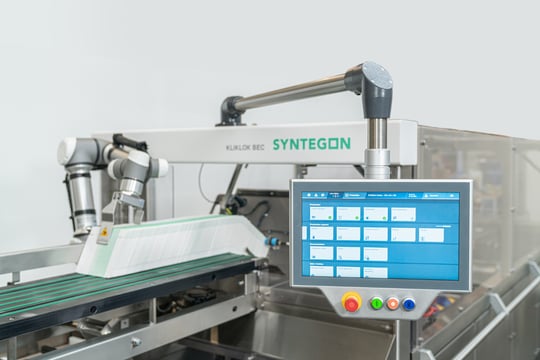

The standard hopper is 1,500 mm long and holds approximately 1,350 carton blanks (depending on board quality and thickness). This is approximately 10 minutes of running. Options are available for a longer hopper, if required. As an option, a BEC Cobot can be included to fully automate continuous carton loading. It is programmed to pick cartons off the pallet, place them on the hopper and gently push the cartons along the hopper at the right pace whilst ensuring cartons remain in their optimal position.

How much electricity and air does the BEC endload cartoner consume?

The newest version BEC endloader has improved its consumption rating. Now, it is more energy efficient, consuming 7 kWh during normal working conditions. Air consumption is 520 l/min.

How many operators are required to operate the BEC?

The basic operator tasks consist of filling the hopper with carton blanks and filling the glue tank with pellets. Cobot solutions can be provided to load the hopper and to autofill the glue system. The number of operators required for loading the product into the product infeed conveyor (PIC) really depends on the speed of the machine, product application and the overall level of automation of your packaging line. Syntegon can also provide various different loading options to automate manual tasks.

To which norms does the Kliklok BEC endload cartoner comply to?

The new Kliklok BEC endloader is supplied fully compliant to CE / UKCA standard. Depending on the final destination, the machine can be supplied fully compliant to UL and AS3000. As standard, the BEC endload cartoner is IP54 compliant. It can be wiped down with mild detergent and warm water. Optionally, the BEC can be installed in other environments, including high care where IP65 and/or caustic wash-down is required.

What are the shipping weight and dimensions?

The BEC endload cartoner is shipped on a wooden pallet with the following dimensions and weight: length 6.5m / width 2.3m / height 1.9m packed weight incl. pallet 3,270 kg Please contact your sales contact, if you have special access / egress requirements.

Do I require air conditioning for the machine in a bakery environment?

The Kliklok BEC control system is Beckhoff AMP. As the system is mounted on-board the machine and does not require a separate electrical panel, air-conditioning is not required.

What industries does the BEC endload cartoner suit?

The Kliklok BEC can fit into many different industries and applications ranging from chilled and frozen, bakery, confectionary, biscuits & crackers, bag in box, bars to other non-food industries. We can also provide loading equipment to collate and stack where necessary.

Can the pitch width be set automatically via the HMI?

The standard Kliklok BEC endload cartoner has a 12”/304 mm pitch. Each pocket is 12”/304 mm long, with a usable length allowing for guides of 10.25”/ 260 mm. A size change on the BEC endloader takes approximately 10 minutes. Specifications are shown in the HMI with easy-to-read adjustment points, making accurate and repeatable size changes easy for the operator. The height is adjusted manually, while the width is adjusted within the HMI. Feedback to the HMI is required so that the machine will not start, if it is not in the correct position.

Is there a confiner as option?

The overhead confiner ensures the product is fully controlled and confined on all sides during the insertion process (application dependent). The confiner is available on the Kliklok BEC endload cartoner as an option.

What formats and sizes can the Kliklok BEC handle?

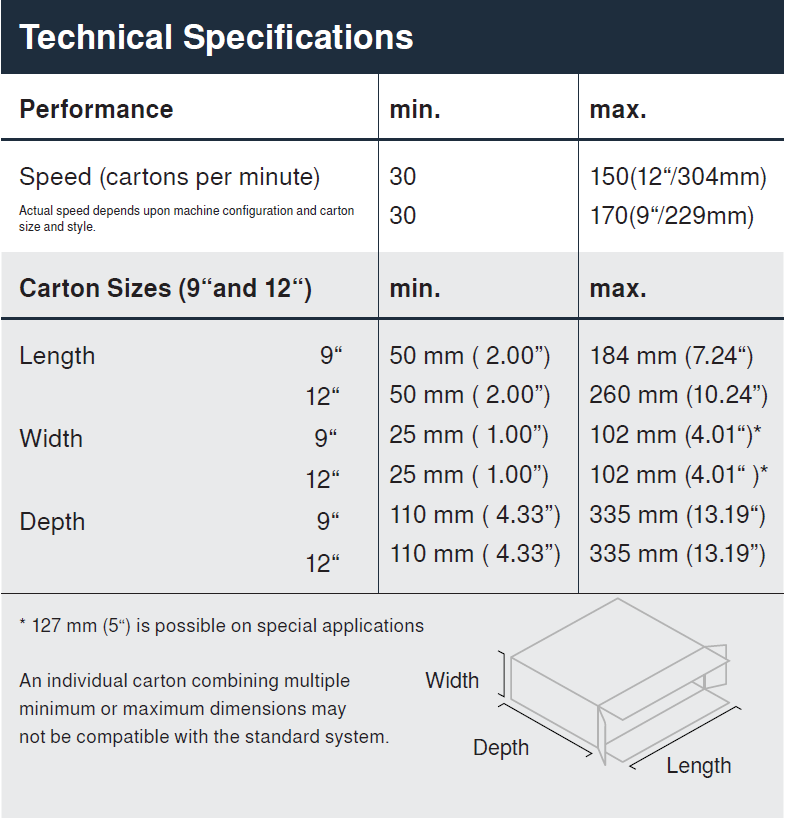

The BEC endload cartoner handles a wide variety of formats, including gable top formats. Carton sizes range from min: 50mm length / 25mm width / 110mm depth to max: 260mm length / 127mm width / 335mm depth

What is different about the new version of the Kliklok BEC?

The latest version of our Kliklok BEC endload cartoner now includes the following: New servo-driven system for greater process stability HMI 4.0 as an interface to Digital Service Solutions Space-saving Beckhoff controls and redesigned compact frame Redesigned Rotary Carton Feeder which is more compact, with high OEE and greater tolerance on board quality and recyclable material content. Reduced power consumption (was 9 kWh, now 7 kWh)

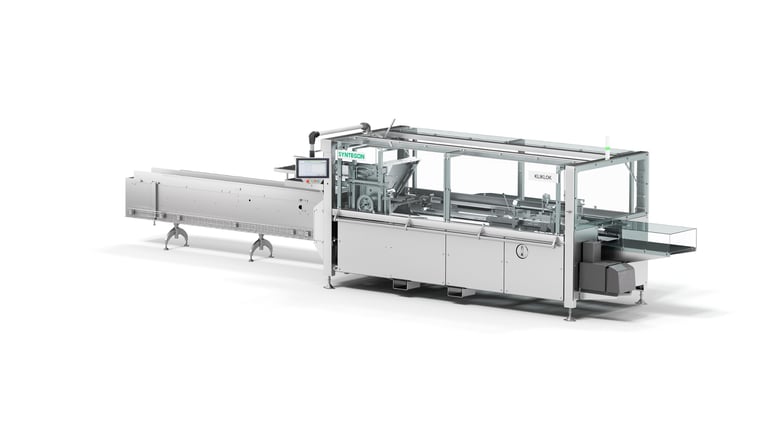

Endload cartoner – Kliklok BEC

The future of endload cartoning. Packed with upgrades.

If you want to grow your business and future-proof your production, the Kliklok BEC endload cartoner is the optimal solution. Kliklok combines the benefits of the proven machine series with a wide range of major upgrades.

Specifically designed to meet your production targets, it is a perfect match for mid-sized businesses that require reasonably priced and robust technologies. The Kliklok BEC is the ideal choice for food to personal care to electronics industries. And many more.

Download now

Boost your production

Flexibility & easy changeovers

With integrated servo drive system

Reduced footprint

No electrical cabinets

Energy efficient

Up to 20% less power consumption

Improved sanitation

Stainless steel, open channel construction

Peace of mind

Comprehensive service solutions

Endload cartoning. Customized to your needs.

Every product is unique. That's why you can choose from a wide range of options for our endload cartoning machines: From carton sizes and styles to specialized infeed systems – we make sure to meet your production requirements.

Any Questions? Book a free call with one of our experts, now.

Book a free call

Fast. Faster. Kliklok.

The new Kliklok BEC endload cartoner is built to withstand the demands of high-speed production environments. The quality materials and robust construction techniques ensure durability and reliability – minimizing downtime and maximizing productivity.

The new, upgraded Kliklok BEC endload cartoner displays:

an optimised servo drive system
a new Human Machine Interface (HMI) 4.0 for easy digital service connectivity
a redesigned, compact, rigid stainless-steel frame
new integrated controls – making the electrical cabinet redundant

Kliklok BEC – Experience meets progress.

“The new Kliklok BEC endload cartoner offers the benefits of our proven machine series combined with the latest technological advancements to meet the requirements of modern automated production processes. We put special emphasis on process stability, easy line integration and maximum connectivity with Syntegon’s Digital Service Solutions."

- Espen Mile, Vice President Strategy and Product Management

Download now

Kliklok BEC Key Features

Rotary Carton Feeder

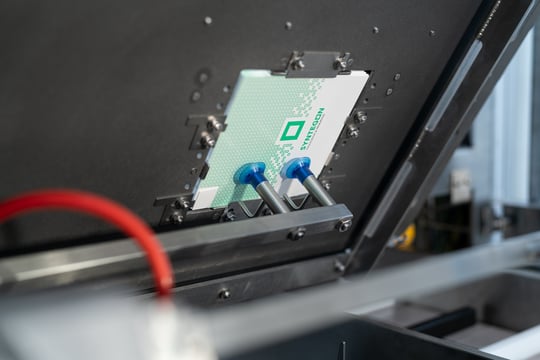

Meet the fastest rotary carton feeder in the industry – a patented Kliklok innovation. A straight-pick motion reduces wear on the suction cups. The short, rigid bars minimize deflection and provide for a reliable, continuous cartoning process.

Smart Machine Options

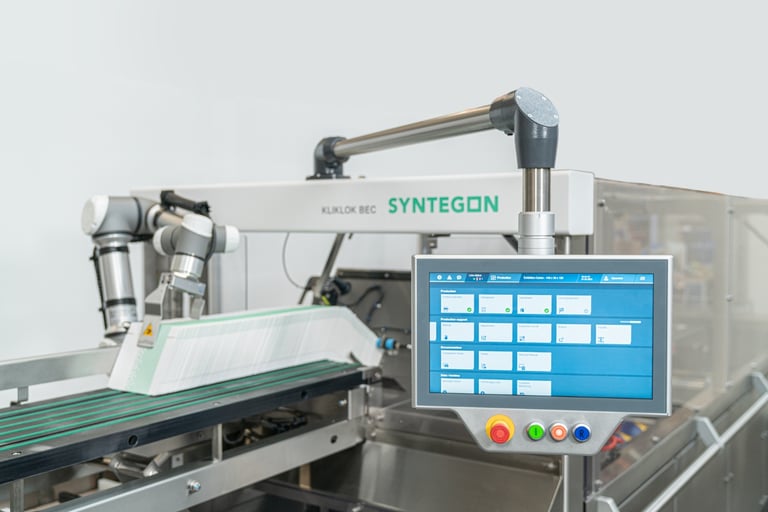

The Syntegon HMI 4.0 gives you the power of enhanced connectivity, while also providing you access to production data down to the component level – all at the touch of a button.

The HMI displays:

tracking of key OEE data
machine settings and alarms
operator guidance through the machine’s set-up and start-up
instructional videos to assist operators

More options? No problem.

Customers who wish to upgrade their BEC endload cartoner even further can choose from a range of additional options: including vibration and temperature monitoring of key technical components like bearings and motors as well as full access to other Syntegon digital service solutions.

Compact Design. Higher Output.

The rigid frame has been redesigned, reducing the Kliklok BEC's footprint significantly. While still offering an accessible, operator friendly layout, new controls in discrete CPU boxes allow for simple cabling without electrical cabinets.

In combination with its open channel, stainless steel execution (IP54 and IP65), the Kliklok BEC endload / sideload cartoner offers a robust, hygienic and highly reliable cartoning solution.

Easy Line Integration

With its HMI 4.0, the BEC is easy to integrate into your existing layout, while also allowing for easy access to Syntegon's digital service solutions.

This means the BEC is easily to connected to your company's higher-level system and integrated with existing upstream and downstream equipment.

As an experienced system provider, Syntegon offers a full range of system solutions, from product distribution to case packing – all from one source.

The don't-worry-about-a-thing solution. Syntegon Service Agreements.

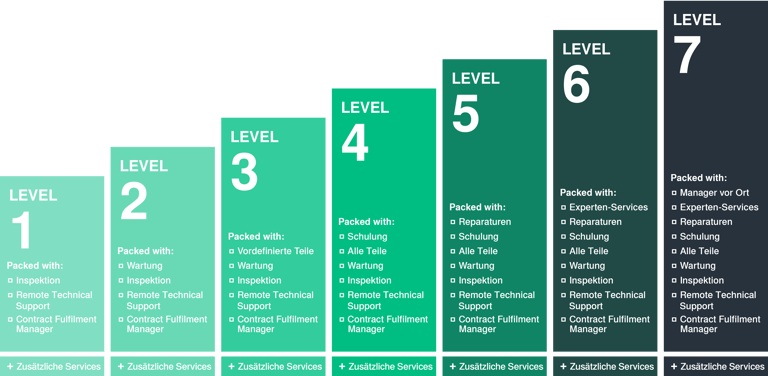

We have packaged our Service, training and consulting products into seven Service Agreement levels to provide you with risk reduction, peace of mind and ultimately value.

Effective asset and maintenance management increases the lifespan and improves the performance as well as reliability of your equipment.

We also support you with standardized packages from inspection to guaranteed production performance of your machines.

All levels are available at a fixed price and can be further customized with additional services.

Explore the seven levels of Syntegon Service Agreements.

Interested?

Get in touch with us.
