    Robotic Solutions
    Robotic Solutions





    Robotic packaging

    Automation in packaging is a fast growing trend. Especially during the Covid-19 pandemic, many manufacturers started replacing manual work steps by fully automated packaging systems. This is where pick and place robots excel. They help food manufacturers to reach their production targets at high efficiency and packaging quality levels.

    Whether you are automating your product handling to feed a single packaging machine or automating a complete line – our robotic packaging systems competence makes the automation process easier for you.

    robotic-packaging-systems

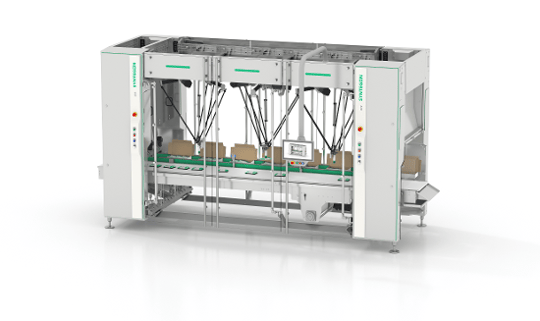

    The Syntegon Robotic Pick & Place platform (RPP)

    Robotic packaging: Our Robotic Pick & Place Platform (RPP)

    RPP: Reduce packaging complexity to the max

    The Syntegon robotic packaging RPP platform offers outstanding modular scalability with a compact footprint. Its reliable performance reduces downtime, provides high product quality, and enables you to react quickly to changing market requirements. The combination of high OEE, cutting-edge robotic packaging systems, and a compact footprint provides maximum output per m2.

    Smart interfaces increase performance with additional robot capacity. A basic robotic RPP configuration consists of two delta robots with a performance of up to 120 picks per robot per minute. The modular design and layout flexibility enable you to scale up step-by-step to grow your production operations.

    robotic-packaging-machine
    background-image

    Robotic packaging machines for your success

    Robotic packaging systems
    Benefit from our turnkey robotic packaging systems. Syntegon has decades of experience with automated packaging processes in many industries.
    Future-proof investments
    The flexible building blocks of our Robotic Pick & Place (RPP) platform allow you to adapt your production step-by-step while you grow.
    Flex to the max
    Take advantage of the Syntegon robotic packaging platform's full product and pack style flexibility.
    Efficient operation
    Maximize performance per m2 production floor space by flexible integration of additional pick and place robots.
    Safeguard quality
    Ensure high food safety with built-in product quality control, gentle product handling and safe operation.

    Robotic packaging case study

    packaging-automation-systems
    Robotic packaging systems solution

    A US-based customer produces toaster pastries. They were looking to further automate their production by removing manual operations from the packaging process.

    Learn more
    machine-frozen-pastries
    Baked Goods: Frozen Pastries

    The customer for this project is a US-based industry leader in developing and producing a variety of bakery products for businesses.

    Learn more
    machine-syntegon-RPPs-and-pack-403s-HD
    Extruded Fruit Leather and Bars

    The customer is a US manufacturer of organic, plant-based food and ingredients.

    Learn more
    french-sticks-header
    French Toast Sticks

    This US-customer is specialized in producing frozen French toast sticks for businesses.

    Learn more

    Robotic packaging FAQ

    Robots replace repetitive manual work while operators may focus on other, more important tasks. With more automation and less hands touching the products – less contamination will happen during the packaging process. As a result, food safety will increase. Robots provide you with maximum performance per m2 floor space in a 24/7 manufacturing/packaging operation.

    The maximum pick rate per single robot arm is 140 picks per minute.

    At Syntegon, we use 2D and 3D inspection technology. The Syntegon 2D inspection technology is standard. It detects the exact position of randomly oriented products on the infeed belt and conducts 2D-quality checks. Syntegon uses a 2D HD-color vision system. The 2D inspection system also identifies when products on the belts are touching.

    Optional, a 3D vision inspection system is available. It is AI-based to enable advanced machine learning. The system checks all products in a 3-dimensional way and rejects faulty products automatically from the packaging process. Based on the statistic system data potential problems in the upstream process can be recognized quickly.

    Optional, a 3D vision inspection system is available. It is AI-based to enable advanced machine learning. The system detects the position, shape, size, color and impurities of all products on the infeed belt. The 3D vision system compares the trained images with the actual products. Deviations from the norm are measured and judged good or bad. Good products will be picked, bad products remain on the belt and will be discharged automatically. Based on the statistic system data potential problems in the upstream process can be recognized quickly.

    Syntegon RPP robotic pick and place lines come with one or more vision cameras per cell. The definite number depends on your process width and the desired resolution of the images. For vision guided robot kinematics, at least one camera is located at the infeed to check quality and location of the incoming products. Depending on the number of robots and robotic cells, more vision cameras can be installed. Products should be detected nearby the correlated robot, so displacement during travel on the belt has no impact on the quality of the final package.

    The Syntegon robotic RPP platform is designed according to hygienic principles:

    • walk-in access and optimal process visibility
    • full stainless steel construction
    • open channel construction
    • angled, self-draining surfaces
    • electrical cabinets are IP65 protected and NEMA 4X certified
    • hygienic belts are available

    The standard robotic RPP platform can be cleaned with city water pressure. Other upgrades such as wash-down-robots to achieve full wash-down capabilities are available. Take a look at the graphic to learn about the chemical resistance of the RPP's stainless steel construction: Using robots to satisfy the strictest hygienic requirements (syntegon.com)

    Robots replace repetitive manual work while operators may focus on other, more important tasks. With more automation and less hands touching the products – less contamination and product breakage will happen during the packaging process. The vacuum is controlled and applied in a gentle and energy-saving manner. As a result, food safety will increase and product waste will be reduced. Syntegon developed a broad range of end effectors: vacuum-grippers, soft robotics, air-flow-tools, mechanical grippers and more.

    Syntegon developed a broad range of end effectors: vacuum-grippers, soft robotics, air-flow-tools, mechanical grippers and more. Our RPP delta robots allow for up to five servo axis kinematic for grouping, tilting, rotating or other operations. Special applications such as reflex-end-of-arm tools provide single-pick-multi-place or multi-pick-single-place handling.

    Yes, we have decades of experience in integration of robots into the packaging process. Please go to the contact button on this page to get in touch with us. We will be happy to show you application examples of different projects and to consult you on your specific robotic packaging and handling requirements.

    Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

    Find out more
    Service Agreements
    Service Agreements

    Find out more about our Service Agreements here.

    Learn more
    Digital Solutions
    Digital Solutions

    Find out more about Digital Solutions here.

    Learn more
    Maintenance
    Maintenance

    Find out more about Maintenance here.

    Learn more
    Technical Support
    Technical Support

    Find out more about Technical Support here.

    Learn more
    Modernizations
    Modernizations

    Find out more about Modernizations here.

    Learn more
    Training
    Training

    Find out more about our Training here.

    Learn more
    Expert Services
    Expert Services

    Find out more about our Expert Services here.

    Learn more

    Why choose Syntegon robotic packaging machines?

    food-packaging-automation

    About us

    Flexibility was key when developing the Robotic Pick & Place (RPP) platform. Instead of just integrating robots, we took a more holistic approach and brought in all of our industry and robotic application expertise. Syntegon offers you complete automation packaging systems that perfectly fit your project – all from a single supplier.

    Learn more
    years of experience
    patents and patent applications
    machines installed world-wide
    locations
    robotic-packaging-andreass

    Andreas Schildknecht, Product Manager Robotics

    The robotic RPP platform is our answer to today's automated packaging needs. It combines Syntegon's wide industry know-how with robotics expertise. RPP offers just the right scale, performance, and flexibility our customers need to build as they grow.

    robotic-packaging-emiliano-villanova

    Emiliano Villanova, Project Manager RPP

    The Syntegon robotic packaging RPP platform features a completely modular design. It can be configured according to customer needs and enables a large range of pick and place applications. Delta robots and other modules can be seamlessly integrated into an overall system, allowing our customers to automate single process steps consecutively.
