Semi-automated & Manual visual inspection

Manual inspection is the cornerstone of visual inspection. It is still the most common method for performing visual inspection of parenteral liquids. It sets the benchmark for an acceptable product and establishes the baseline for validation. Manual inspection hoods from Syntegon are ideally suited for small lots, re-inspection of rejects/ejects, and batch releases. The VIS semi-automated visual inspection series is the perfect hybrid solution between manual inspection and automated inspection.

Download our flyer

Key benefits

100% global quality standards

Meet all global standards for visual inspection systems, including those of the World Health Organization (WHO), as well as the United States, European and Japanese pharmacopeias

Ergonomic design

We provide a broad range of options and models to ensure operators’ comfort and easy operations

Optimize production processes

The MIH series is ideal for small lot or AQL inspection of vials, ampoules, syringes, and cartridges. It can also be used to re-inspect rejects from automated machines and validate other inline inspection systems

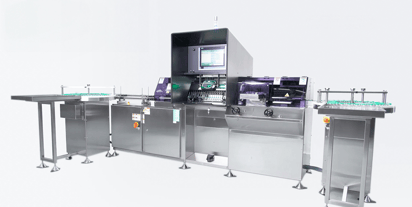

The VIS 1000 complements our semi-automated inspection portfolio with an even more efficient and user-friendly inspection solution for liquids, powders, and freeze-dried products in vials. Container infeed, transport, and the reject of identified faulty objects occur automatically. The VIS 1000 facilitates the operator's detection of particles and cosmetic defects: By rotating the vial at high speed, potential particles are stirred up before inspection. Additionally, the object is rotated by 360° during inspection. Various lighting options from the top, front, back, and bottom, as well as mirror and magnifier options, further simplify the detection of faulty products.

Benefits:

Adjustable mirrors and various lighting options for optimal defect detection
Automated reject function
Broad format range from 2R up to 250H vials

Request a quote

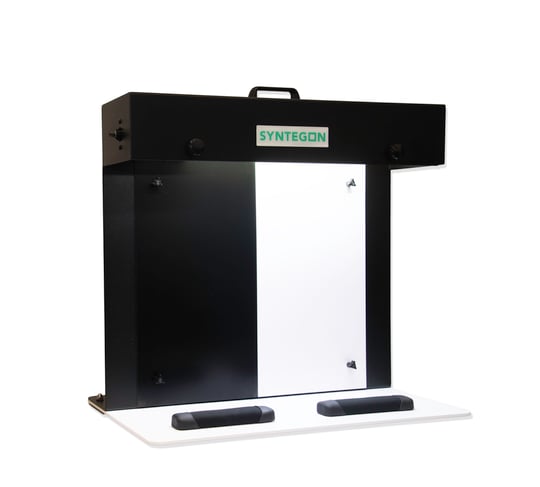

The MIH-PORT2 is a manual inspection hood for inspecting parenteral products which offers improved inspection features while remaining portable.

Featuring two overhead Adjustable LED fixtures for an increased depth of lighting and a large black and white background it provides an optimal environment to properly inspect both particulate and cosmetic defects.

Adjustable Intensity White LED Lighting:
- Ten turn position light adjustment with locking knob and pivoting lighting mounts.
Adjustable light shield to prevent glare and accommodate varying operator position.
45% Larger black and white background (compared to our standard MIH-PORT).
Reinforced design to avoid movement and swaying of the background and lights.

Request a quote

The MIH DX features stainless steel construction with courtesy side shields, adjustable non-glaring black and white background, acoustical foam-lined interior, and two single light intensity LED lighting fixtures

Benefits:

Better light conditions due to side shields
Available with Tyndall light to accentuate glass cracks, stones and chips, also well suited for suspensions
Option: 1.75x magnifier
Overhead lighting options: Single light intensity slim LED lighting, dual light intensity LED lighting, or adjustable intensity white LED lighting

Request a quote

The MIH-DL is an advanced manual inspection system that provides an optimal environment for the inspection of difficult to inspect parenteral drugs.

Benefits:

Upper and lower lighting provides homogeneous lighting to aid in inspection of various products
LED lighting features isotropic lensing which produces even illumination with minimal hotspots or glare.
Matte black aluminum construction minimizes glare

Request a quote

The MIH LX features a programmable inspection time/pacing system with sensor verification of the container and inspector’s hand in the inspection zone. Other standard features include matte, black-finished aluminum construction, non-glaring black and white with reversible gray background, a white base with padded elbow rests and two single light intensity LED lighting fixtures.

Benefits:

Height-adjustable lighting and background
Timer, two LED indicator lamps, two position-sensitive infrared photoelectric sensors, one alarm buzzer, one "Timer Reset" button and an operator interface panel
Option: 1.75x magnifier
Overhead lighting options: Single light intensity slim LED lighting, dual light intensity LED lighting, or adjustable intensity white LED lighting

Request a quote

The MIH-1 workstation provides a productive work environment by improving the lighting and ergonomics and minimizing co-worker interruptions or other distracting influences. An aluminum frame with casters is equipped with a lift system allowing rapid height adjustment from 30 to 46 in. (76 to 117 cm) for inspection from standing or sitting positions.

Benefits:

Ergonomic design
Adjustable side trays or tub holders (for syringes)
Electrically operated lift mechanism to facilitate ergonomic working positions
Side shields for better light conditions
Options: 1.75X (3 Diopter) Magnification Lens mounted on adjustable swing arm, Tyndall Light with variable adjustment and Black Hole background to improve illumination of particles
Overhead lighting options: Single light intensity slim LED lighting, dual light intensity LED lighting, or adjustable intensity white LED lighting

Request a quote

The MIH-1S is a variant of our MIH-1 manual inspection system that provides an optimal environment for inspection of sterile injectable products in vial, ampoule, syringe and cartridge containers. It serves as a standalone inspection station and has a lift system for height adjustment.

This 36” (91,4 cm) wide model is designed to fit in smaller spaces and allows our clients the flexibility to have a standalone unit in spaces where our standard 60” (152,4 cm) model would be too large.

Benefits:

Ergonomic design
Electrically operated lift mechanism to facilitate ergonomic working positions
Side shields for better light conditions
Option: 1.75X (3 Diopter) magnification lens mounted on adjustable swing arm, Tyndall Light with variable adjustment and black hole background to improve illumination of particles
Overhead lighting options: Single light intensity slim LED lighting, dual light intensity LED lighting, or adjustable intensity white LED lighting

Request a quote

The MIH-IV features a sliding hook, which enables the operator to hang the IV bag for inspection. The hook easily slides for a seamless transition from one side of the black and white background to the next. This motion triggers particulate movement, enhances inspection capability and operator ergonomics.

Benefits:

Light housing with a ten turn position light adjustment with a lock-in knob and pivoting lighting mount
Inspects IV bags up to 2,000 ml (2 liters)
Options: Additional lower lighting fixture

Request a quote

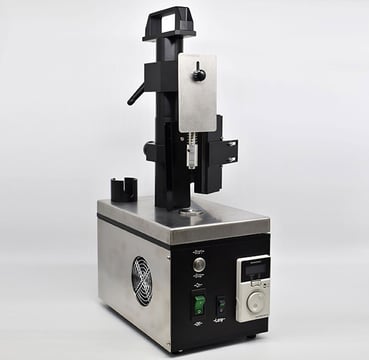

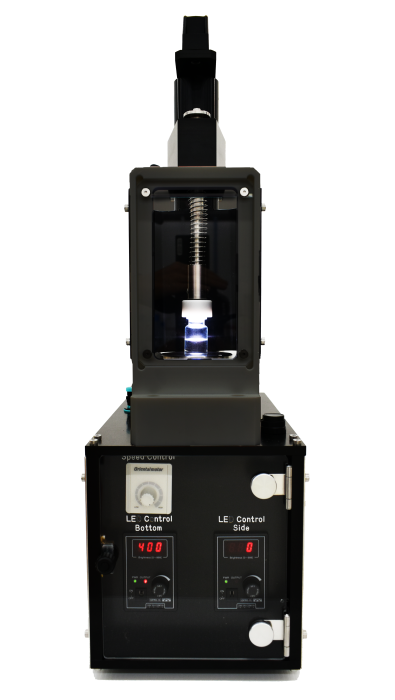

The APK is a table-top visual observation tool for particle inspection. We offer different models with various lighting systems, spin functions and additional special features depending on your requirements, container type and the size range.

Benefits:

Validation of test samples to evaluate the performance of an automated inspection system
Small batch visual inspection
Verification of product rejects
Particle type / size analysis

Request a quote
